diaedge
MMS0420X5DB DP7020
Skip to product information

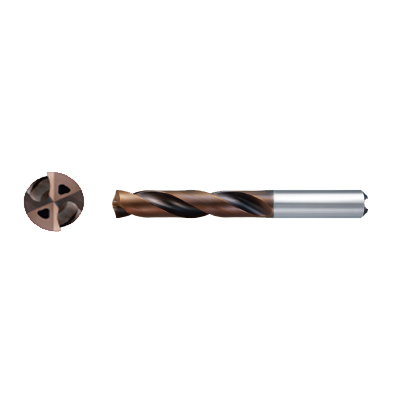

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

555153

ANSI

MMS0420X5DB DP7020

ISO

MMS0420X5DB DP7020

M (Stainless)

12

Regular price $159.17 USD
Regular price Sale price $159.17 USD
Sale

EDP

555153

ANSI

MMS0420X5DB DP7020

ISO

MMS0420X5DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features

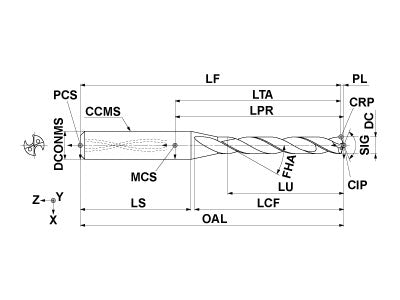

  • Drawings
  • Technical Information
MMS0420X5DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.2
ULDR
5
LU
21.8
LCF
33.8
OAL
82.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MMS0420X5DB DP7020

Unit: mm

DC
4.2
ULDR
5
LU
21.8
LCF
33.8
OAL
82.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
