diaedge
MMS0690X5DB DP7020
Skip to product information

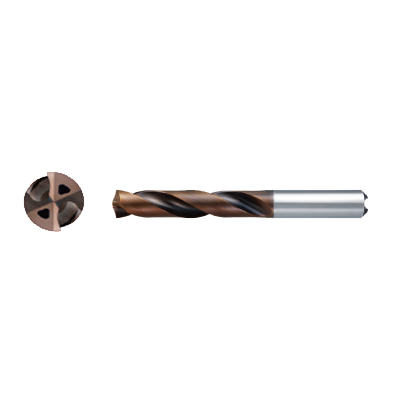

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

555428

ANSI

MMS0690X5DB DP7020

ISO

MMS0690X5DB DP7020

M (Stainless)

4

Regular price $205.43 USD
Regular price Sale price $205.43 USD
Sale

EDP

555428

ANSI

MMS0690X5DB DP7020

ISO

MMS0690X5DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS0690X5DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
6.9
ULDR
5
LU
35.8
LCF
50.3
OAL
99.3
DCONMS
8
PL
1.3
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
MMS0690X5DB DP7020

Unit: mm

DC
6.9
ULDR
5
LU
35.8
LCF
50.3
OAL
99.3
DCONMS
8
PL
1.3
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
