diaedge

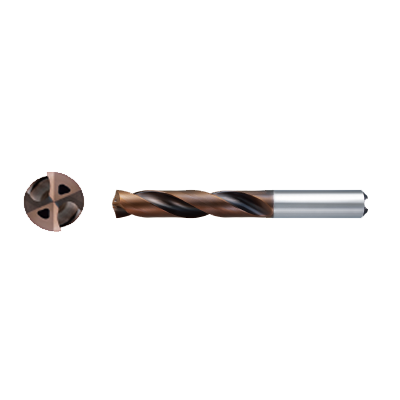

MMS0870X5DB DP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

555604

ANSI

MMS0870X5DB DP7020

ISO

MMS0870X5DB DP7020

M (Stainless)

2

Regular price $245.74 USD
Regular price Sale price $245.74 USD
Sale

EDP

555604

ANSI

MMS0870X5DB DP7020

ISO

MMS0870X5DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS0870X5DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
8.7
ULDR
5
LU
45.1
LCF
64.6
OAL
117.6
DCONMS
10
PL
1.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
MMS0870X5DB DP7020

Unit: mm

DC
8.7
ULDR
5
LU
45.1
LCF
64.6
OAL
117.6
DCONMS
10
PL
1.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
