diaedge

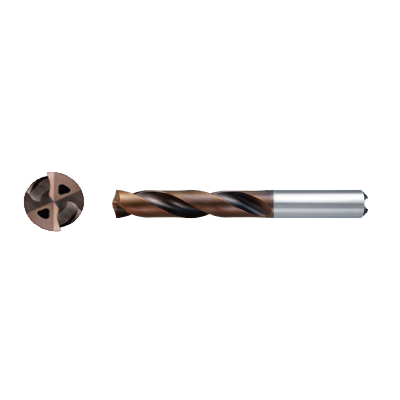

MMS1540X5DB DP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

556279

ANSI

MMS1540X5DB DP7020

ISO

MMS1540X5DB DP7020

M (Stainless)

1

Regular price $518.08 USD
Regular price Sale price $518.08 USD
Sale

EDP

556279

ANSI

MMS1540X5DB DP7020

ISO

MMS1540X5DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS1540X5DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
15.4
ULDR
5
LU
79.8
LCF
111.8
OAL
173.8
DCONMS
16
PL
2.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
MMS1540X5DB DP7020

Unit: mm

DC
15.4
ULDR
5
LU
79.8
LCF
111.8
OAL
173.8
DCONMS
16
PL
2.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
