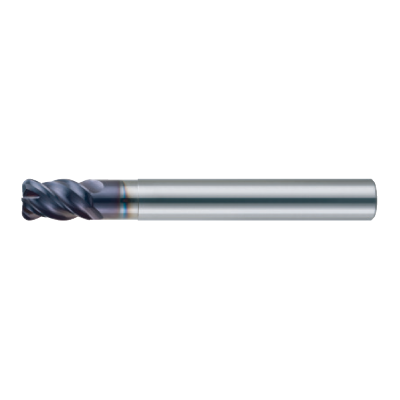

diaedge
VFHVRBD1/8N5DR0.03
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

566098

ANSI

VFHVRB/0.03RX1/8X5D

ISO

VFHVRBD1/8N5DR0.03

P (Steel) K (Cast Iron) H (Hard material)

105

Regular price $91.68 USD
Regular price Sale price $91.68 USD
Sale

EDP

566098

ANSI

VFHVRB/0.03RX1/8X5D

ISO

VFHVRBD1/8N5DR0.03

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

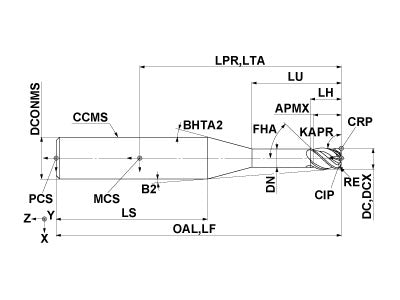

  • Drawings
  • Technical Information
VFHVRBD1/8N5DR0.03
Coolant
External
Hand
Right

Unit: inch

DC
0.125
APMX
0.125
LU
0.625
LH
0.127
OAL
2.25
DN
0.1211
DCONMS
0.25
BHTA2
15
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
VFHVRBD1/8N5DR0.03

Unit: inch

DC
0.125
APMX
0.125
LU
0.625
LH
0.127
OAL
2.25
DN
0.1211
DCONMS
0.25
BHTA2
15
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
