VFHVRBD1/4N5DR0.06
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

566135

ANSI

VFHVRB/0.06RX1/4X5D

ISO

VFHVRBD1/4N5DR0.06

P (Steel) K (Cast Iron) H (Hard material)

119

Regular price $125.26 USD
Regular price Sale price $125.26 USD
Sale

EDP

566135

ANSI

VFHVRB/0.06RX1/4X5D

ISO

VFHVRBD1/4N5DR0.06

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

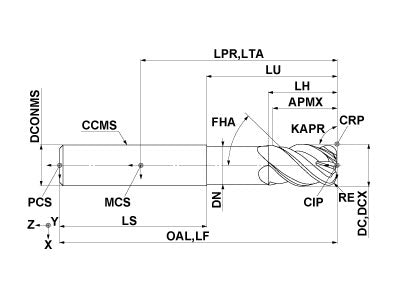

  • Drawings
  • Technical Information
VFHVRBD1/4N5DR0.06
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
0.375
LU
1.25
LH
0.378
OAL
3
DN
0.2441
DCONMS
0.25
RE
0.06
FHA
45.0
ZEFP
4
ZEFF
4
VFHVRBD1/4N5DR0.06

Unit: inch

DC
0.25
APMX
0.375
LU
1.25
LH
0.378
OAL
3
DN
0.2441
DCONMS
0.25
RE
0.06
FHA
45.0
ZEFP
4
ZEFF
4
