VFHVRBD5/16N5DR0.08
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

566151

ANSI

VFHVRB/0.08RX5/16X5D

ISO

VFHVRBD5/16N5DR0.08

P (Steel) K (Cast Iron) H (Hard material)

18

Regular price $152.10 USD
Regular price Sale price $152.10 USD
Sale

EDP

566151

ANSI

VFHVRB/0.08RX5/16X5D

ISO

VFHVRBD5/16N5DR0.08

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

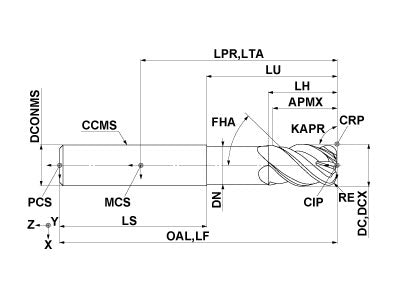

  • Drawings
  • Technical Information
VFHVRBD5/16N5DR0.08
Coolant
External
Hand
Right

Unit: inch

DC
0.3125
APMX
0.469
LU
1.563
LH
0.472
OAL
4
DN
0.3066
DCONMS
0.3125
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4
VFHVRBD5/16N5DR0.08

Unit: inch

DC
0.3125
APMX
0.469
LU
1.563
LH
0.472
OAL
4
DN
0.3066
DCONMS
0.3125
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4
