diaedge
VFHVRBD3/8N3DR0.08
Skip to product information

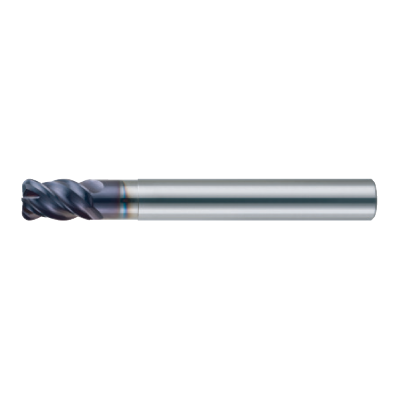

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

566160

ANSI

VFHVRB/0.08RX3/8X3D

ISO

VFHVRBD3/8N3DR0.08

P (Steel) K (Cast Iron) H (Hard material)

56

Regular price $171.74 USD
Regular price Sale price $171.74 USD
Sale

EDP

566160

ANSI

VFHVRB/0.08RX3/8X3D

ISO

VFHVRBD3/8N3DR0.08

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

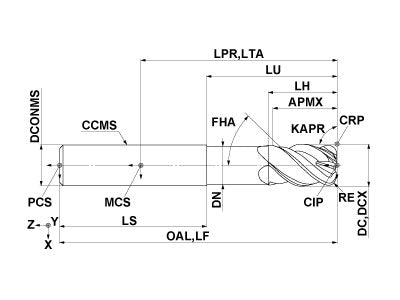

  • Drawings
  • Technical Information
VFHVRBD3/8N3DR0.08
Coolant
External
Hand
Right

Unit: inch

DC
0.375
APMX
0.563
LU
1.125
LH
0.566
OAL
3
DN
0.3691
DCONMS
0.375
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4
VFHVRBD3/8N3DR0.08

Unit: inch

DC
0.375
APMX
0.563
LU
1.125
LH
0.566
OAL
3
DN
0.3691
DCONMS
0.375
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4
