EDP
566178
ANSI
VFHVRB/0.08RX3/8X5D
ISO
VFHVRBD3/8N5DR0.08
Stock
88
Price
Regular price
$194.29 USD
Regular price
Sale price
$194.29 USD
Unit price
/
per
EDP
566178
ANSI
VFHVRB/0.08RX3/8X5D
ISO
VFHVRBD3/8N5DR0.08
Change the number in sums of 1s.
- Dimensions
- Features

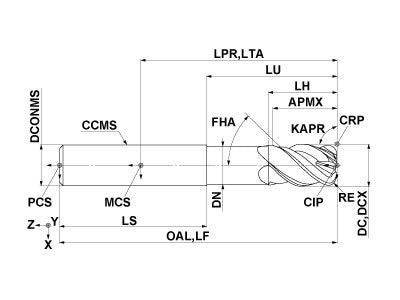

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: inch
DC
0.375
APMX
0.563
LU
1.875
LH
0.566
OAL
4
DN
0.3691
DCONMS
0.375
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4
Unit: inch
DC
0.375
APMX
0.563
LU
1.875
LH
0.566
OAL
4
DN
0.3691
DCONMS
0.375
RE
0.08
FHA
45.0
ZEFP
4
ZEFF
4

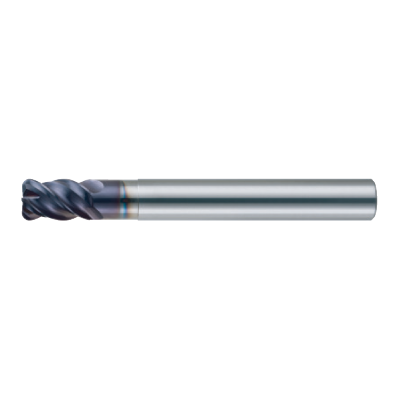

Impact Miracle corner radius end mill for high feed and efficient machining.
2D Model (DXF)
3D Model (STP)
