VFHVRBD1/2N3DR0.12
Skip to product information

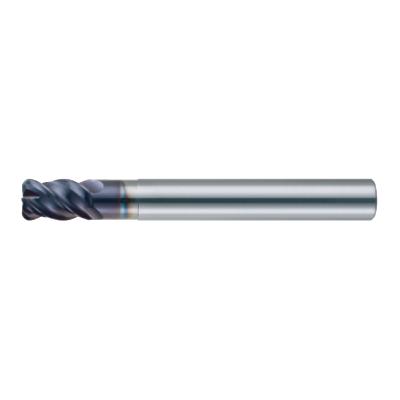

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

566186

ANSI

VFHVRB/0.12RX1/2X3D

ISO

VFHVRBD1/2N3DR0.12

P (Steel) K (Cast Iron) H (Hard material)

378

Regular price $206.07 USD
Regular price Sale price $206.07 USD
Sale

EDP

566186

ANSI

VFHVRB/0.12RX1/2X3D

ISO

VFHVRBD1/2N3DR0.12

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

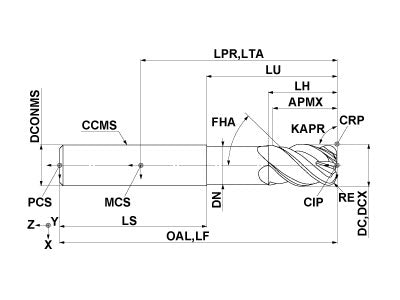

  • Drawings
  • Technical Information
VFHVRBD1/2N3DR0.12
Coolant
External
Hand
Right

Unit: inch

DC
0.5
APMX
0.75
LU
1.5
LH
0.756
OAL
4
DN
0.4882
DCONMS
0.5
RE
0.12
FHA
45.0
ZEFP
4
ZEFF
4
VFHVRBD1/2N3DR0.12

Unit: inch

DC
0.5
APMX
0.75
LU
1.5
LH
0.756
OAL
4
DN
0.4882
DCONMS
0.5
RE
0.12
FHA
45.0
ZEFP
4
ZEFF
4
