diaedge
XDGX175032PDFR-GL TF15
Skip to product information

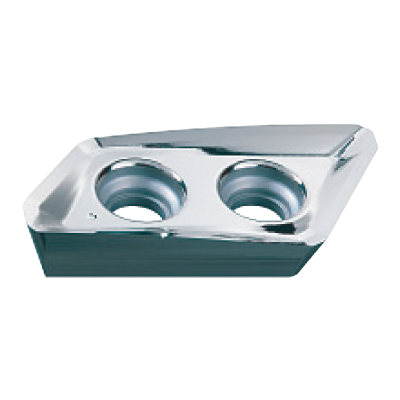

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

567082

ANSI

XDGX175032PDFR-GL TF15

ISO

XDGX175032PDFR-GL TF15

N (Non-Ferrous)

590

Regular price $41.69 USD
Regular price Sale price $41.69 USD
Sale

EDP

567082

ANSI

XDGX175032PDFR-GL TF15

ISO

XDGX175032PDFR-GL TF15

N (Non-Ferrous)
View full details

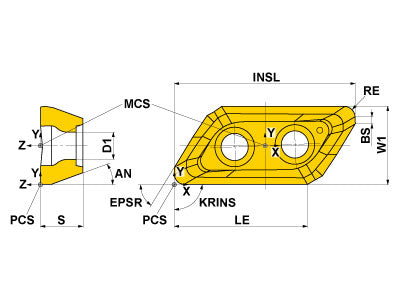

  • Dimensions
  • Drawings
  • Technical Information
XDGX175032PDFR-GL TF15
Hand
Right

Unit: mm

TC
G
CNC
2
LE
16.1
W1
10
S
5
BS
0.6
RE
3.2
AN
20
XDGX175032PDFR-GL TF15

Unit: mm

TC
G
CNC
2
LE
16.1
W1
10
S
5
BS
0.6
RE
3.2
AN
20

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS3SB 565440 TS3SB
inventory mark
$9.09
