diaedge
VFMDRBD0300R030
Skip to product information

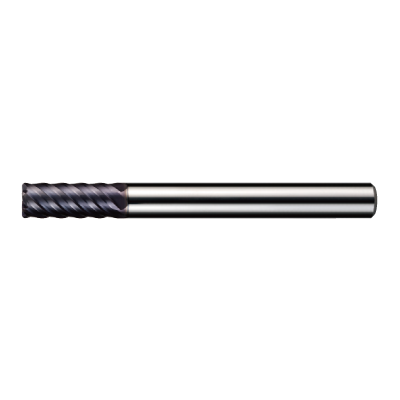

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

568026

ANSI

VF-MDRB/0.3RX3

ISO

VFMDRBD0300R030

H (Hard material)

10

Regular price $129.78 USD
Regular price Sale price $129.78 USD
Sale

EDP

568026

ANSI

VF-MDRB/0.3RX3

ISO

VFMDRBD0300R030

H (Hard material)
View full details
  • Dimensions
  • Features

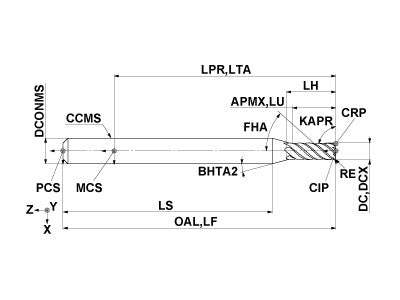

  • Drawings
  • Technical Information
VFMDRBD0300R030
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
10
LU
10
LH
10.9
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
6
ZEFF
6
VFMDRBD0300R030

Unit: mm

DC
3
APMX
10
LU
10
LH
10.9
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
6
ZEFF
6
