diaedge
VFHVRBD060R15N060T09
Skip to product information

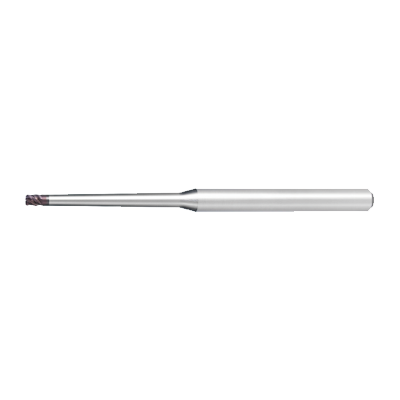

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

568739

ANSI

VFHVRB/1.5R6X09X60

ISO

VFHVRBD060R15N060T09

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $169.66 USD
Regular price Sale price $169.66 USD
Sale

EDP

568739

ANSI

VFHVRB/1.5R6X09X60

ISO

VFHVRBD060R15N060T09

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

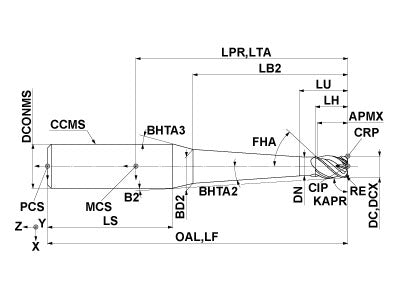

  • Drawings
  • Technical Information
VFHVRBD060R15N060T09
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
9
LU
12
LB2
60
LH
9.08
OAL
110
DN
5.85
DCONMS
8
BHTA2
0.9
BHTA3
15
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD060R15N060T09

Unit: mm

DC
6
APMX
9
LU
12
LB2
60
LH
9.08
OAL
110
DN
5.85
DCONMS
8
BHTA2
0.9
BHTA3
15
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
