diaedge
VFHVRBD080R20N060T09
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

568755

ANSI

VFHVRB/2R8X09X60

ISO

VFHVRBD080R20N060T09

P (Steel) K (Cast Iron) H (Hard material)

1

Regular price $258.27 USD
Regular price Sale price $258.27 USD
Sale

EDP

568755

ANSI

VFHVRB/2R8X09X60

ISO

VFHVRBD080R20N060T09

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

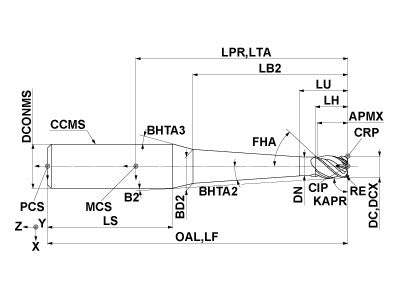

  • Drawings
  • Technical Information
VFHVRBD080R20N060T09
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
12
LU
15
LB2
60
LH
12.08
OAL
150
DN
7.85
DCONMS
10
BHTA2
0.9
BHTA3
15
RE
2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD080R20N060T09

Unit: mm

DC
8
APMX
12
LU
15
LB2
60
LH
12.08
OAL
150
DN
7.85
DCONMS
10
BHTA2
0.9
BHTA3
15
RE
2
FHA
45
ZEFP
4
ZEFF
4
