AXD4000UR243SA20SA
Skip to product information

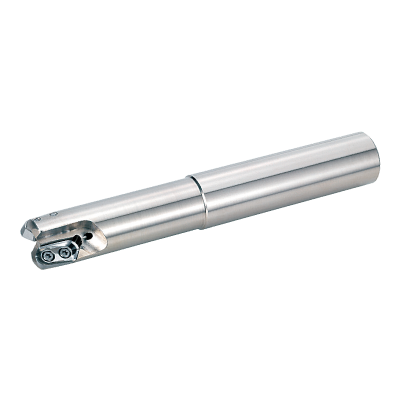

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569168

ANSI

AXD4000UR243SA20SA

ISO

AXD4000UR243SA20SA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

34

Regular price $711.37 USD
Regular price Sale price $711.37 USD
Sale

EDP

569168

ANSI

AXD4000UR243SA20SA

ISO

AXD4000UR243SA20SA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

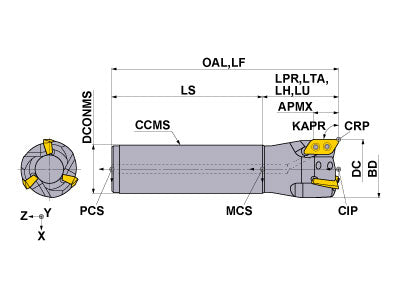

  • Drawings
  • Technical Information
AXD4000UR243SA20SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
6
APMX
0.61
LH
2
OAL
6
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
41000
GAMF
21
GAMP
14
WT
1.9
AXD4000UR243SA20SA

Unit: inch

DC
1.5
LF
6
APMX
0.61
LH
2
OAL
6
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
41000
GAMF
21
GAMP
14
WT
1.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08D 106895 TKY08D
inventory mark
$14.00
TS3SB 565440 TS3SB
inventory mark
$9.82
MK1KS 291805 MK1KS
inventory mark
$4.22
