EDP

569176

ANSI

AXD4000UR243SA20LA

ISO

AXD4000UR243SA20LA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Out of stock

Regular price $727.16 USD
Regular price Sale price $727.16 USD
Sale

EDP

569176

ANSI

AXD4000UR243SA20LA

ISO

AXD4000UR243SA20LA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

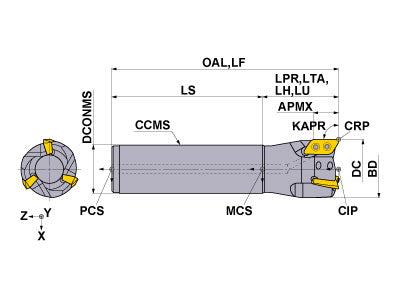

  • Drawings
  • Technical Information
AXD4000UR243SA20LA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
9
APMX
0.61
LH
2
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
41000
GAMF
21
GAMP
14
WT
2.9
AXD4000UR243SA20LA

Unit: inch

DC
1.5
LF
9
APMX
0.61
LH
2
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
41000
GAMF
21
GAMP
14
WT
2.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS3SB 565440 TS3SB
inventory mark
$9.82
MK1KS 291805 MK1KS
inventory mark
$4.22
TKY08D 106895 TKY08D
inventory mark
$14.00
