diaedge
AXD4000UR162SA12SB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569184

ANSI

AXD4000UR162SA12SB

ISO

AXD4000UR162SA12SB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Out of stock

Regular price $521.34 USD
Regular price Sale price $521.34 USD
Sale

EDP

569184

ANSI

AXD4000UR162SA12SB

ISO

AXD4000UR162SA12SB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

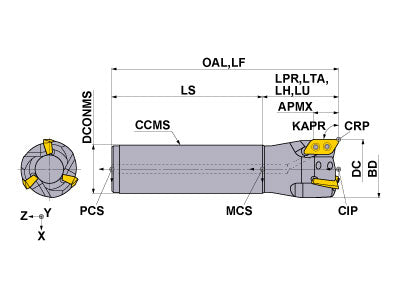

  • Drawings
  • Technical Information
AXD4000UR162SA12SB
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
6
APMX
0.583
LH
2
OAL
6
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RPMX
49000
GAMF
18
GAMP
11
WT
0.7
AXD4000UR162SA12SB

Unit: inch

DC
1
LF
6
APMX
0.583
LH
2
OAL
6
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RPMX
49000
GAMF
18
GAMP
11
WT
0.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS3SB 565440 TS3SB
inventory mark
$9.82
MK1KS 291805 MK1KS
inventory mark
$4.22
TKY08D 106895 TKY08D
inventory mark
$14.00
