diaedge
AXD4000UR202SA20SB
Skip to product information

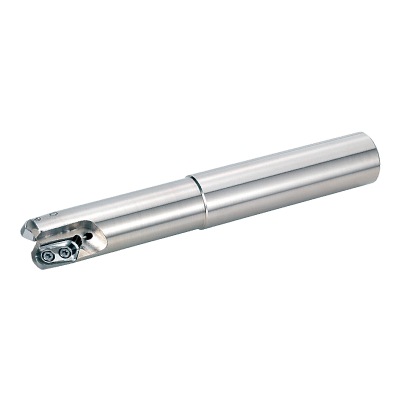

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

569213

ANSI

AXD4000UR202SA20SB

ISO

AXD4000UR202SA20SB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

21

Regular price $526.60 USD
Regular price Sale price $526.60 USD
Sale

EDP

569213

ANSI

AXD4000UR202SA20SB

ISO

AXD4000UR202SA20SB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

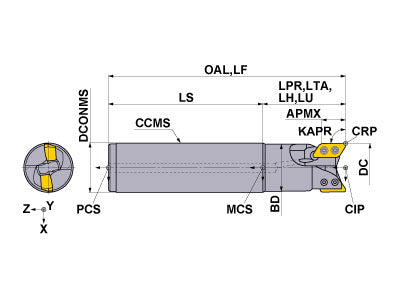

  • Drawings
  • Technical Information
AXD4000UR202SA20SB
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
6
APMX
0.583
LH
2
OAL
6
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RPMX
48000
GAMF
20
GAMP
13
WT
1.8
AXD4000UR202SA20SB

Unit: inch

DC
1.25
LF
6
APMX
0.583
LH
2
OAL
6
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RPMX
48000
GAMF
20
GAMP
13
WT
1.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS3SB 565440 TS3SB
inventory mark
$9.09
MK1KS 291805 MK1KS
inventory mark
$3.91
TKY08D 106895 TKY08D
inventory mark
$12.96
