AXD4000UR0204A
print open mailer

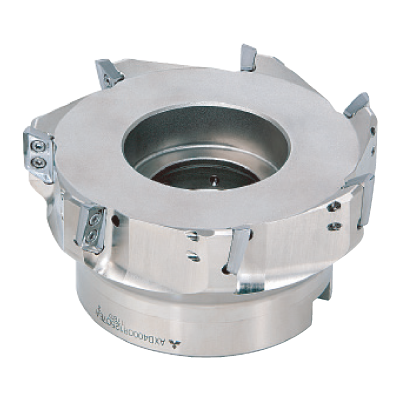

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

569299

ANSI

AXD4000UR0204A

ISO

AXD4000UR0204A

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
552

Price
$854.77 USD
$854.77 USD
Sale

EDP

569299

ANSI

AXD4000UR0204A

ISO

AXD4000UR0204A

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

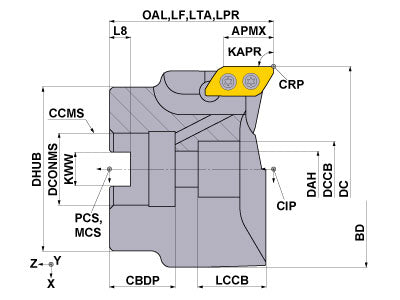

  • Drawings
  • Technical Information
AXD4000UR0204A
Coolant
Internal
Hand
Right

Unit: mm

DC
50.8
LF
50.8
APMX
15.5
OAL
50.8
DCONMS
19.05
DCSFMS
44.45
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
35000
GAMF
23
GAMP
15
WT
0.900
AXD4000UR0204A

Unit: mm

DC
50.8
LF
50.8
APMX
15.5
OAL
50.8
DCONMS
19.05
DCSFMS
44.45
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
35000
GAMF
23
GAMP
15
WT
0.900


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08D 106895 TKY08D
inventory mark
$15.86
TS3SB 565440 TS3SB
inventory mark
$11.12
HSCU37513H 242835 HSCU37513H
inventory mark
$21.20
MK1KS 291805 MK1KS
inventory mark
$4.79
