AXD4000UR2504CA
Skip to product information

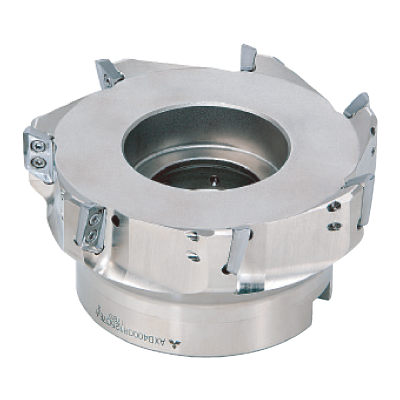

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569301

ANSI

AXD4000UR2504CA

ISO

AXD4000UR2504CA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

44

Regular price $775.28 USD
Regular price Sale price $775.28 USD
Sale

EDP

569301

ANSI

AXD4000UR2504CA

ISO

AXD4000UR2504CA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

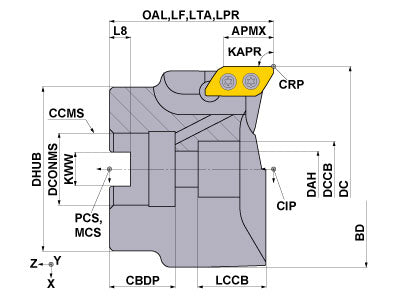

  • Drawings
  • Technical Information
AXD4000UR2504CA
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
LF
2
APMX
0.61
OAL
2
DCONMS
1
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
30000
GAMF
24
GAMP
15
WT
1.4
AXD4000UR2504CA

Unit: inch

DC
2.5
LF
2
APMX
0.61
OAL
2
DCONMS
1
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
30000
GAMF
24
GAMP
15
WT
1.4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08D 106895 TKY08D
inventory mark
$12.96
MK1KS 291805 MK1KS
inventory mark
$3.91
TS3SB 565440 TS3SB
inventory mark
$9.09
HSCU50014H 243707 HSCU50014H
inventory mark
$25.51
