diaedge
AXD4000UR0406EA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569344

ANSI

AXD4000UR0406EA

ISO

AXD4000UR0406EA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

23

Regular price $1,153.71 USD
Regular price Sale price $1,153.71 USD
Sale

EDP

569344

ANSI

AXD4000UR0406EA

ISO

AXD4000UR0406EA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

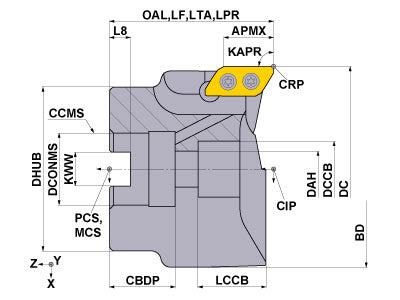

  • Drawings
  • Technical Information
AXD4000UR0406EA
Coolant
Internal
Hand
Right

Unit: inch

DC
4
LF
2.5
APMX
0.61
OAL
2.5
DCONMS
1.5
DCSFMS
3.81
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
23000
GAMF
25
GAMP
15
WT
5.5
AXD4000UR0406EA

Unit: inch

DC
4
LF
2.5
APMX
0.61
OAL
2.5
DCONMS
1.5
DCSFMS
3.81
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
23000
GAMF
25
GAMP
15
WT
5.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS3SB 565440 TS3SB
inventory mark
$9.82
MK1KS 291805 MK1KS
inventory mark
$4.22
TKY08D 106895 TKY08D
inventory mark
$14.00
HSCU75016H 243715 HSCU75016H
inventory mark
$34.31
