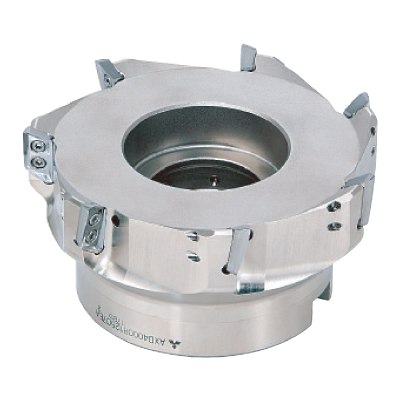

diaedge
AXD4000UR0507EA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569361

ANSI

AXD4000UR0507EA

ISO

AXD4000UR0507EA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

11

Regular price $1,258.39 USD
Regular price Sale price $1,258.39 USD
Sale

EDP

569361

ANSI

AXD4000UR0507EA

ISO

AXD4000UR0507EA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

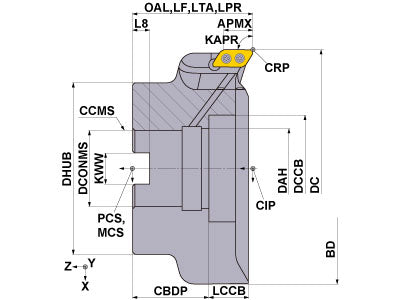

  • Drawings
  • Technical Information
AXD4000UR0507EA
Coolant
Internal
Hand
Right

Unit: inch

DC
5
LF
2.5
APMX
0.61
OAL
2.5
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
90
RPMX
20000
GAMF
26
GAMP
15
WT
6.7
AXD4000UR0507EA

Unit: inch

DC
5
LF
2.5
APMX
0.61
OAL
2.5
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
90
RPMX
20000
GAMF
26
GAMP
15
WT
6.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TKY08D 106895 TKY08D
inventory mark
$12.96
TS3SB 565440 TS3SB
inventory mark
$9.09
