diaedge
VFMDRBD0500R030
Skip to product information

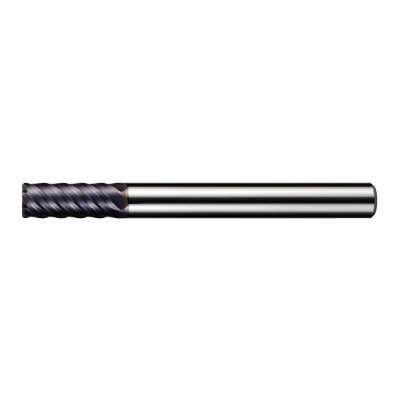

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

569432

ANSI

VF-MDRB/0.3RX5

ISO

VFMDRBD0500R030

H (Hard material)

10

Regular price $149.37 USD
Regular price Sale price $149.37 USD
Sale

EDP

569432

ANSI

VF-MDRB/0.3RX5

ISO

VFMDRBD0500R030

H (Hard material)
View full details
  • Dimensions
  • Features

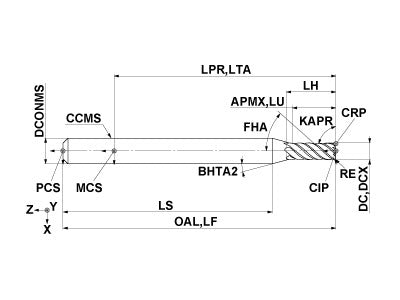

  • Drawings
  • Technical Information
VFMDRBD0500R030
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
15
LU
15
LH
16.2
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
6
ZEFF
6
VFMDRBD0500R030

Unit: mm

DC
5
APMX
15
LU
15
LH
16.2
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
6
ZEFF
6
