diaedge

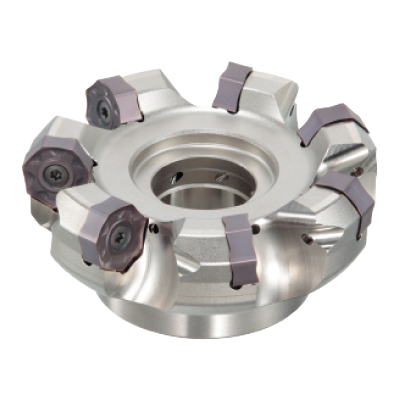

AHX640SUR2504AA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

572578

ANSI

AHX640SUR2504AA

ISO

AHX640SUR2504AA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

18

Regular price $697.53 USD
Regular price Sale price $697.53 USD
Sale

EDP

572578

ANSI

AHX640SUR2504AA

ISO

AHX640SUR2504AA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

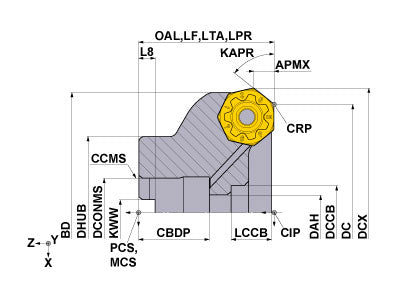

  • Drawings
  • Technical Information
AHX640SUR2504AA
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
DCX
2.994
LF
2
APMX
0.236
OAL
2
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
50
RPMX
11800
GAMF
-5
GAMP
-6
WT
2.0
AHX640SUR2504AA

Unit: inch

DC
2.5
DCX
2.994
LF
2
APMX
0.236
OAL
2
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
50
RPMX
11800
GAMF
-5
GAMP
-6
WT
2.0

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20T 213663 TKY20T
inventory mark
$4.16
CS5015060T 258976 CS5015060T
inventory mark
$3.87
HSCU37513H 242835 HSCU37513H
inventory mark
$19.06
