diaedge
AHX640SUR0306DA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

572607

ANSI

AHX640SUR0306DA

ISO

AHX640SUR0306DA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

21

Regular price $925.23 USD
Regular price Sale price $925.23 USD
Sale

EDP

572607

ANSI

AHX640SUR0306DA

ISO

AHX640SUR0306DA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

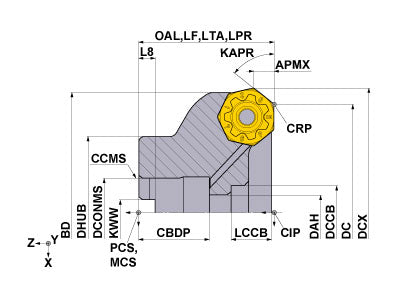

  • Drawings
  • Technical Information
AHX640SUR0306DA
Coolant
Internal
Hand
Right

Unit: inch

DC
3
DCX
3.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
50
RPMX
10000
GAMF
-5
GAMP
-6
WT
3.5
AHX640SUR0306DA

Unit: inch

DC
3
DCX
3.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
50
RPMX
10000
GAMF
-5
GAMP
-6
WT
3.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20T 213663 TKY20T
inventory mark
$4.16
CS5015060T 258976 CS5015060T
inventory mark
$3.87
HSCU62516H 361931 HSCU62516H
inventory mark
$30.84
