diaedge
AHX640SUR0407EA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

572623

ANSI

AHX640SUR0407EA

ISO

AHX640SUR0407EA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

31

Regular price $1,098.71 USD
Regular price Sale price $1,098.71 USD
Sale

EDP

572623

ANSI

AHX640SUR0407EA

ISO

AHX640SUR0407EA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

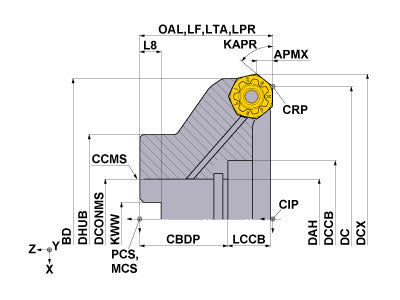

  • Drawings
  • Technical Information
AHX640SUR0407EA
Coolant
Internal
Hand
Right

Unit: inch

DC
4
DCX
4.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
50
RPMX
8600
GAMF
-5
GAMP
-6
WT
6.4
AHX640SUR0407EA

Unit: inch

DC
4
DCX
4.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
50
RPMX
8600
GAMF
-5
GAMP
-6
WT
6.4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
CS5015060T 258976 CS5015060T
inventory mark
$3.87
TKY20T 213663 TKY20T
inventory mark
$4.16
HSCU75016H 243715 HSCU75016H
inventory mark
$31.77
