diaedge

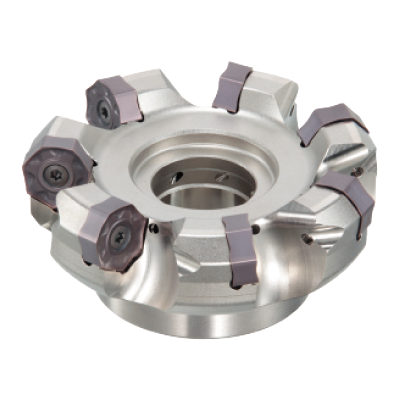

AHX640SUR0610FA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

572666

ANSI

AHX640SUR0610FA

ISO

AHX640SUR0610FA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

24

Regular price $1,775.17 USD
Regular price Sale price $1,775.17 USD
Sale

EDP

572666

ANSI

AHX640SUR0610FA

ISO

AHX640SUR0610FA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

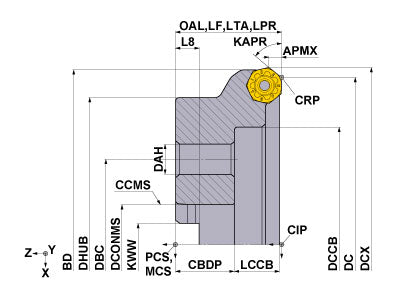

  • Drawings
  • Technical Information
AHX640SUR0610FA
Coolant
Internal
Hand
Right

Unit: inch

DC
6
DCX
6.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2
NOF
10
ZEFF
10
ZEFP
10
KAPR
50
RPMX
6400
GAMF
-5
GAMP
-6
WT
11.2
AHX640SUR0610FA

Unit: inch

DC
6
DCX
6.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2
NOF
10
ZEFF
10
ZEFP
10
KAPR
50
RPMX
6400
GAMF
-5
GAMP
-6
WT
11.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MBAU100016H 418028 MBAU100016H
inventory mark
$160.51
TKY20T 213663 TKY20T
inventory mark
$4.16
CS5015060T 258976 CS5015060T
inventory mark
$3.87
