diaedge
AHX640SUR0808MN
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

572674

ANSI

AHX640SUR0808MN

ISO

AHX640SUR0808MN

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

6

Regular price $1,970.63 USD
Regular price Sale price $1,970.63 USD
Sale

EDP

572674

ANSI

AHX640SUR0808MN

ISO

AHX640SUR0808MN

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

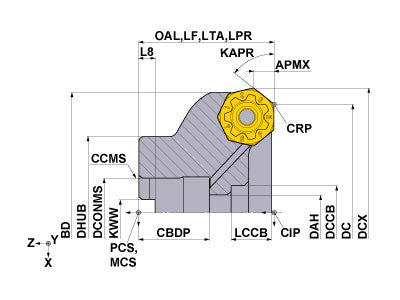

  • Drawings
  • Technical Information
AHX640SUR0808MN
Coolant
External
Hand
Right

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
8
ZEFF
8
ZEFP
8
KAPR
50
RPMX
5000
GAMF
-5
GAMP
-6
WT
18.5
AHX640SUR0808MN

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
8
ZEFF
8
ZEFP
8
KAPR
50
RPMX
5000
GAMF
-5
GAMP
-6
WT
18.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20T 213663 TKY20T
inventory mark
$4.16
CS5015060T 258976 CS5015060T
inventory mark
$3.87
