diaedge

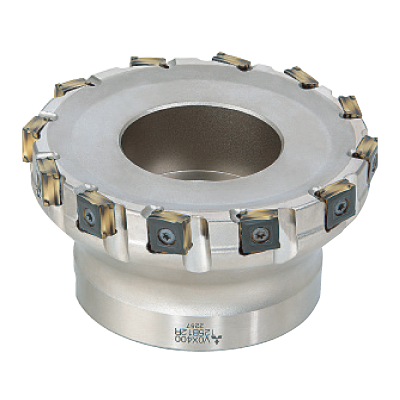

VOX400UR2506C
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

578523

ANSI

VOX400UR2506C

ISO

VOX400UR2506C

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1

33

Regular price $779.20 USD
Regular price Sale price $779.20 USD
Sale

EDP

578523

ANSI

VOX400UR2506C

ISO

VOX400UR2506C

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1
View full details
  • Dimensions
  • Features

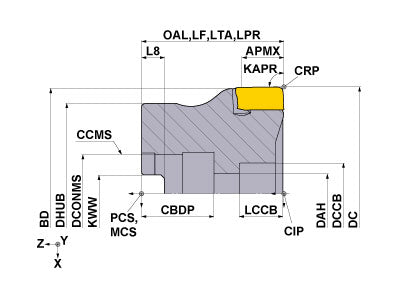

  • Drawings
  • Technical Information
VOX400UR2506C
Coolant
External
Hand
Right

Unit: inch

DC
2.5
LF
2
APMX
0.394
OAL
2
DCONMS
1
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
GAMF
-18
GAMP
-6
WT
1.7
VOX400UR2506C

Unit: inch

DC
2.5
LF
2
APMX
0.394
OAL
2
DCONMS
1
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
GAMF
-18
GAMP
-6
WT
1.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15T 106903 TKY15T
inventory mark
$4.52
CS401160T 560702 CS401160T
inventory mark
$12.13
