EDP

578540

ANSI

VOX400UR0410E

ISO

VOX400UR0410E

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1

26

Regular price $1,241.16 USD
Regular price Sale price $1,241.16 USD
Sale

EDP

578540

ANSI

VOX400UR0410E

ISO

VOX400UR0410E

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1
View full details
  • Dimensions
  • Features

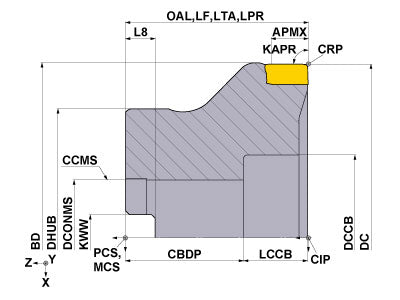

  • Drawings
  • Technical Information
VOX400UR0410E
Coolant
External
Hand
Right

Unit: inch

DC
4
LF
2
APMX
0.394
OAL
2
DCONMS
1.5
DCSFMS
3.81
NOF
10
ZEFF
10
ZEFP
10
KAPR
90
GAMF
-18
GAMP
-6
WT
4.3
VOX400UR0410E

Unit: inch

DC
4
LF
2
APMX
0.394
OAL
2
DCONMS
1.5
DCSFMS
3.81
NOF
10
ZEFF
10
ZEFP
10
KAPR
90
GAMF
-18
GAMP
-6
WT
4.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15T 106903 TKY15T
inventory mark
$4.96
CS401160T 560702 CS401160T
inventory mark
$13.10
