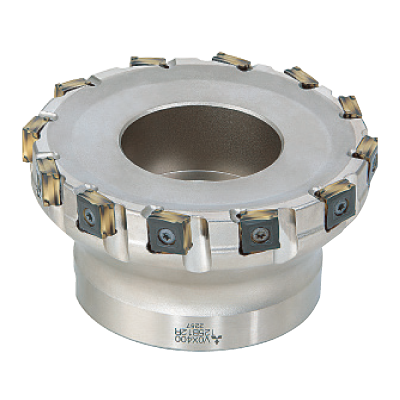

VOX400UR0512E
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

578558

ANSI

VOX400UR0512E

ISO

VOX400UR0512E

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1

3

Regular price $1,506.99 USD
Regular price Sale price $1,506.99 USD
Sale

EDP

578558

ANSI

VOX400UR0512E

ISO

VOX400UR0512E

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1
View full details
  • Dimensions
  • Features

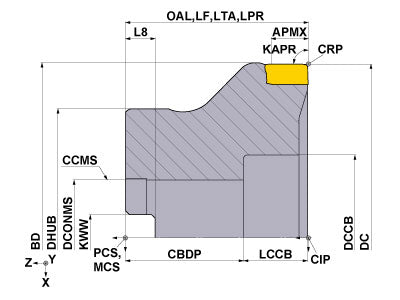

  • Drawings
  • Technical Information
VOX400UR0512E
Coolant
External
Hand
Right

Unit: inch

DC
5
LF
2
APMX
0.394
OAL
2
DCONMS
1.5
DCSFMS
3.81
NOF
12
ZEFF
12
ZEFP
12
KAPR
90
GAMF
-18
GAMP
-6
WT
6.000
VOX400UR0512E

Unit: inch

DC
5
LF
2
APMX
0.394
OAL
2
DCONMS
1.5
DCSFMS
3.81
NOF
12
ZEFF
12
ZEFP
12
KAPR
90
GAMF
-18
GAMP
-6
WT
6.000

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15T 106903 TKY15T
inventory mark
$4.96
CS401160T 560702 CS401160T
inventory mark
$13.10
