diaedge
VOX400UR0820M
Skip to product information

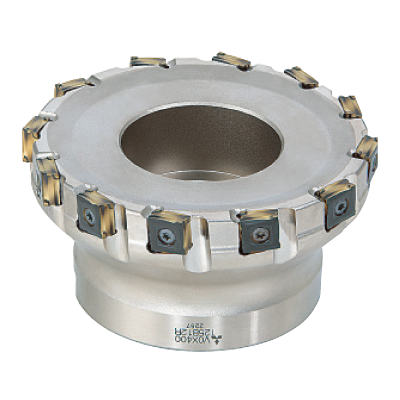

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

578574

ANSI

VOX400UR0820M

ISO

VOX400UR0820M

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1

3

Regular price $2,135.42 USD
Regular price Sale price $2,135.42 USD
Sale

EDP

578574

ANSI

VOX400UR0820M

ISO

VOX400UR0820M

K (Cast Iron)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1
View full details
  • Dimensions
  • Features

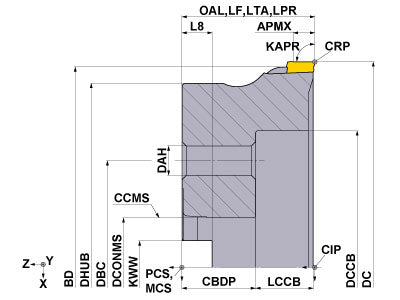

  • Drawings
  • Technical Information
VOX400UR0820M
Coolant
External
Hand
Right

Unit: inch

DC
8
LF
2.5
APMX
0.394
OAL
2.5
DCONMS
2.5
NOF
20
ZEFF
20
ZEFP
20
KAPR
90
GAMF
-18
GAMP
-6
WT
17.6
VOX400UR0820M

Unit: inch

DC
8
LF
2.5
APMX
0.394
OAL
2.5
DCONMS
2.5
NOF
20
ZEFF
20
ZEFP
20
KAPR
90
GAMF
-18
GAMP
-6
WT
17.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
CS401160T 560702 CS401160T
inventory mark
$12.13
TKY15T 106903 TKY15T
inventory mark
$4.52
