diaedge
VFX6UR0305DA12
Skip to product information

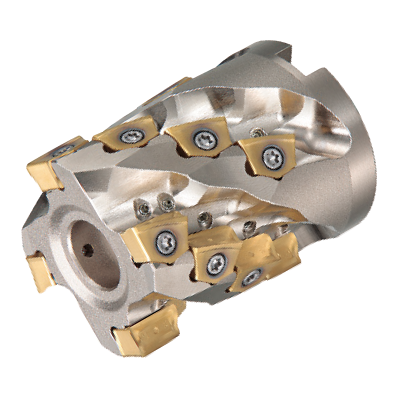

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

596561

ANSI

VFX6UR0305DA12

ISO

VFX6UR0305DA12

S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

5

Regular price $1,993.62 USD
Regular price Sale price $1,993.62 USD
Sale

EDP

596561

ANSI

VFX6UR0305DA12

ISO

VFX6UR0305DA12

S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features

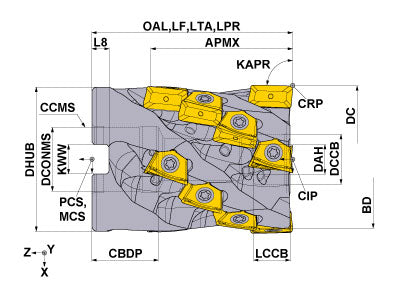

  • Drawings
  • Technical Information
VFX6UR0305DA12
Coolant
Internal
Hand
Right

Unit: inch

DC
3
LF
2.5
APMX
1.2
OAL
2.5
DCONMS
1.25
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
WT
0.3
VFX6UR0305DA12

Unit: inch

DC
3
LF
2.5
APMX
1.2
OAL
2.5
DCONMS
1.25
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
WT
0.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSD04004H08 560585 HSD04004H08
inventory mark
$7.48
WU625-S1 596617 WU625-S1
inventory mark
$21.93
TKY20T 213663 TKY20T
inventory mark
$4.16
MK1KS 291805 MK1KS
inventory mark
$3.91
TS450 560286 TS450
inventory mark
$10.48
