diaedge
VFX5UR0306DA29
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

599025

ANSI

VFX5UR0306DA29

ISO

VFX5UR0306DA29

S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

5

Regular price $3,631.87 USD
Regular price Sale price $3,631.87 USD
Sale

EDP

599025

ANSI

VFX5UR0306DA29

ISO

VFX5UR0306DA29

S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VFX5UR0306DA29
Coolant
Internal
Hand
Right

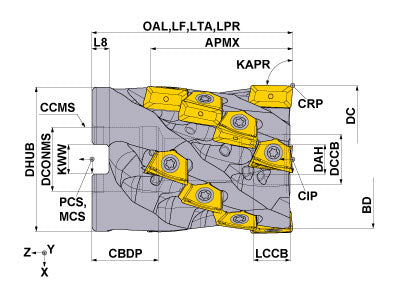

Unit: inch

DC
3
LF
4.25
APMX
2.9
OAL
4.25
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
WT
1.2
VFX5UR0306DA29

Unit: inch

DC
3
LF
4.25
APMX
2.9
OAL
4.25
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
WT
1.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY10D 242261 TKY10D
inventory mark
$14.00
HSD04004H08 560585 HSD04004H08
inventory mark
$7.48
MK1KS 291805 MK1KS
inventory mark
$3.91
WU625-S1 596617 WU625-S1
inventory mark
$21.93
TS352 573010 TS352
inventory mark
$10.48
