diaedge
VF2XLBD3/16N6D
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

613739

ANSI

VF2XLB/D3/16N6D

ISO

VF2XLBD3/16N6D

H (Hard material)

40

Regular price $120.64 USD
Regular price Sale price $120.64 USD
Sale

EDP

613739

ANSI

VF2XLB/D3/16N6D

ISO

VF2XLBD3/16N6D

H (Hard material)
View full details
  • Dimensions
  • Features

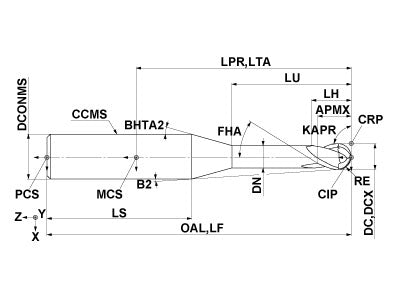

  • Drawings
  • Technical Information
VF2XLBD3/16N6D
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.1875
LU
1.125
LH
0.19
OAL
3
DN
0.1835
DCONMS
0.25
BHTA2
12
RE
0.0938
FHA
30.0
ZEFP
2
ZEFF
2
VF2XLBD3/16N6D

Unit: inch

DC
0.1875
APMX
0.1875
LU
1.125
LH
0.19
OAL
3
DN
0.1835
DCONMS
0.25
BHTA2
12
RE
0.0938
FHA
30.0
ZEFP
2
ZEFF
2
