diaedge
VFMDD3/16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

613907

ANSI

VF-MD/3/16

ISO

VFMDD3/16

H (Hard material)

123

Regular price $82.02 USD
Regular price Sale price $82.02 USD
Sale

EDP

613907

ANSI

VF-MD/3/16

ISO

VFMDD3/16

H (Hard material)
View full details
  • Dimensions
  • Features

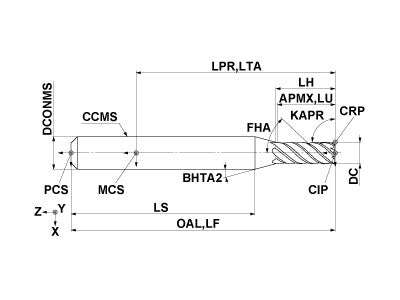

  • Drawings
  • Technical Information
VFMDD3/16
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.563
LU
0.563
LH
0.61
OAL
2.5
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
6
ZEFF
6
VFMDD3/16

Unit: inch

DC
0.1875
APMX
0.563
LU
0.563
LH
0.61
OAL
2.5
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
6
ZEFF
6
