diaedge
VQMHVD1/8
print open mailer

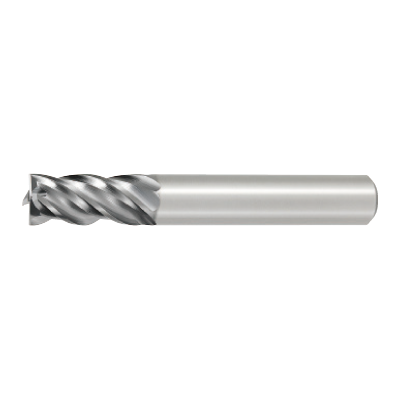

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

613958

ANSI

VQMHV/1/8

ISO

VQMHVD1/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

Stock
518

Price
$42.57 USD
$42.57 USD
Sale

EDP

613958

ANSI

VQMHV/1/8

ISO

VQMHVD1/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

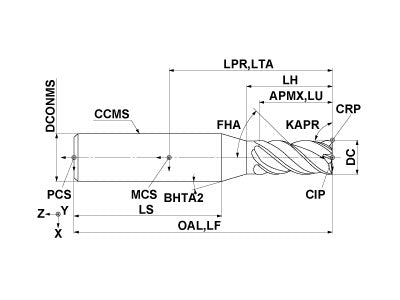

  • Drawings
  • Technical Information
VQMHVD1/8
Coolant
External
Hand
Right

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVD1/8

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
40.0
ZEFP
4
ZEFF
4
