diaedge
VQMHVD5/16
Skip to product information

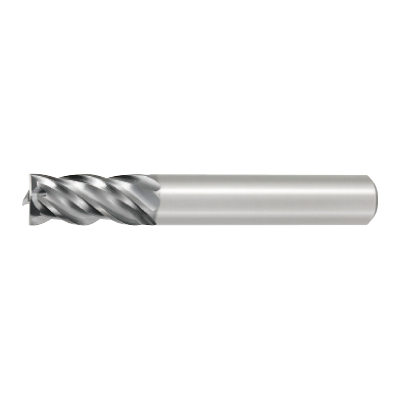

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

613982

ANSI

VQMHV/5/16

ISO

VQMHVD5/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

570

Regular price $97.12 USD
Regular price Sale price $97.12 USD
Sale

EDP

613982

ANSI

VQMHV/5/16

ISO

VQMHVD5/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

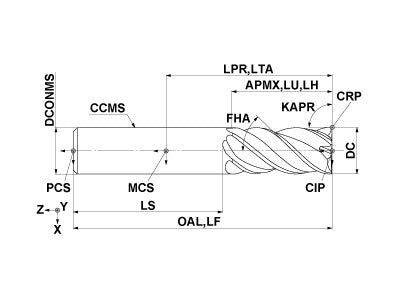

  • Drawings
  • Technical Information
VQMHVD5/16
Coolant
External
Hand
Right

Unit: inch

DC
0.3125
APMX
0.75
LU
0.75
LH
0.75
OAL
2.75
DCONMS
0.3125
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVD5/16

Unit: inch

DC
0.3125
APMX
0.75
LU
0.75
LH
0.75
OAL
2.75
DCONMS
0.3125
FHA
40.0
ZEFP
4
ZEFF
4
