diaedge
VQMHVRBD1/8R010
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614029

ANSI

VQMHVRB/010RX1/8

ISO

VQMHVRBD1/8R010

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

132

Regular price $59.59 USD
Regular price Sale price $59.59 USD
Sale

EDP

614029

ANSI

VQMHVRB/010RX1/8

ISO

VQMHVRBD1/8R010

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

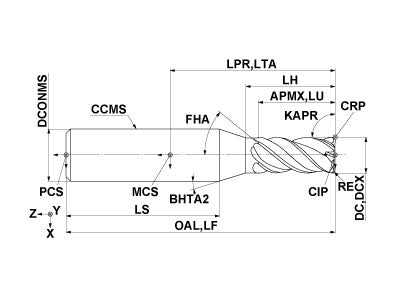

  • Drawings
  • Technical Information
VQMHVRBD1/8R010
Coolant
External
Hand
Right

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.01
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD1/8R010

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.01
FHA
40.0
ZEFP
4
ZEFF
4
