VQMHVRBD3/16R020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614053

ANSI

VQMHVRB/020RX3/16

ISO

VQMHVRBD3/16R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

680

Regular price $84.43 USD
Regular price Sale price $84.43 USD
Sale

EDP

614053

ANSI

VQMHVRB/020RX3/16

ISO

VQMHVRBD3/16R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

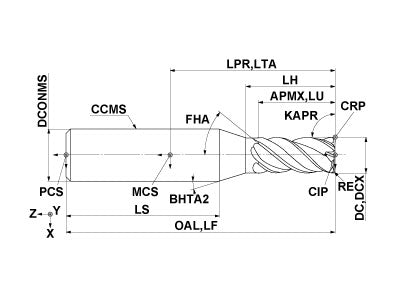

  • Drawings
  • Technical Information
VQMHVRBD3/16R020
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.4375
LU
0.4375
LH
0.485
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD3/16R020

Unit: inch

DC
0.1875
APMX
0.4375
LU
0.4375
LH
0.485
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
