diaedge
VQMHVRBD3/16R030
Skip to product information

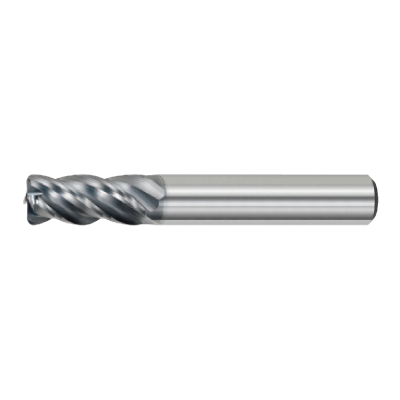

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614061

ANSI

VQMHVRB/030RX3/16

ISO

VQMHVRBD3/16R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

Out of stock

Regular price $91.18 USD
Regular price Sale price $91.18 USD
Sale

EDP

614061

ANSI

VQMHVRB/030RX3/16

ISO

VQMHVRBD3/16R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

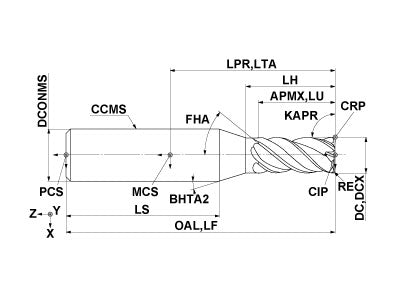

  • Drawings
  • Technical Information
VQMHVRBD3/16R030
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.4375
LU
0.4375
LH
0.485
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.03
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD3/16R030

Unit: inch

DC
0.1875
APMX
0.4375
LU
0.4375
LH
0.485
OAL
2
DCONMS
0.25
BHTA2
15
RE
0.03
FHA
40.0
ZEFP
4
ZEFF
4
