diaedge
VQMHVRBD1/4R020
Skip to product information

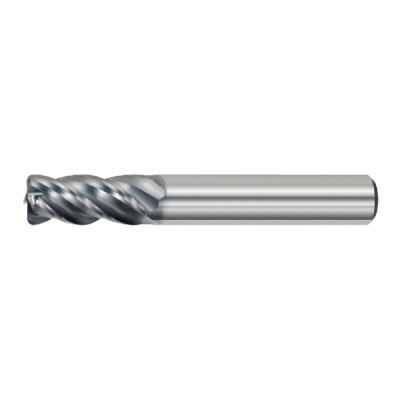

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614109

ANSI

VQMHVRB/020RX1/4

ISO

VQMHVRBD1/4R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

232

Regular price $98.46 USD
Regular price Sale price $98.46 USD
Sale

EDP

614109

ANSI

VQMHVRB/020RX1/4

ISO

VQMHVRBD1/4R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

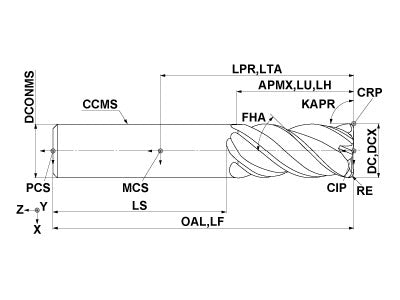

  • Drawings
  • Technical Information
VQMHVRBD1/4R020
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
0.625
LU
0.625
LH
0.625
OAL
2.5
DCONMS
0.25
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD1/4R020

Unit: inch

DC
0.25
APMX
0.625
LU
0.625
LH
0.625
OAL
2.5
DCONMS
0.25
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
