diaedge
VQMHVRBD1/4R030
Skip to product information

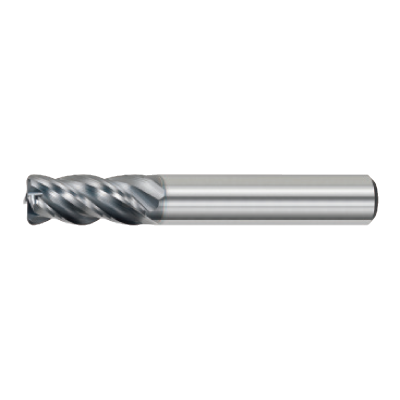

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614117

ANSI

VQMHVRB/030RX1/4

ISO

VQMHVRBD1/4R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

214

Regular price $106.34 USD
Regular price Sale price $106.34 USD
Sale

EDP

614117

ANSI

VQMHVRB/030RX1/4

ISO

VQMHVRBD1/4R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

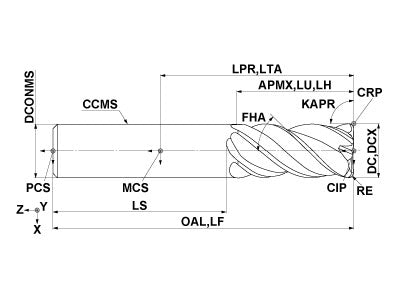

  • Drawings
  • Technical Information
VQMHVRBD1/4R030
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
0.625
LU
0.625
LH
0.625
OAL
2.5
DCONMS
0.25
RE
0.03
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD1/4R030

Unit: inch

DC
0.25
APMX
0.625
LU
0.625
LH
0.625
OAL
2.5
DCONMS
0.25
RE
0.03
FHA
40.0
ZEFP
4
ZEFF
4
