EDP
614141
ANSI
VQMHVRB/020RX5/16
ISO
VQMHVRBD5/16R020
Stock
68
Price
Regular price
$135.97 USD
Regular price
Sale price
$135.97 USD
Unit price
/
per
EDP
614141
ANSI
VQMHVRB/020RX5/16
ISO
VQMHVRBD5/16R020
Change the number in sums of 1s.
- Dimensions
- Features

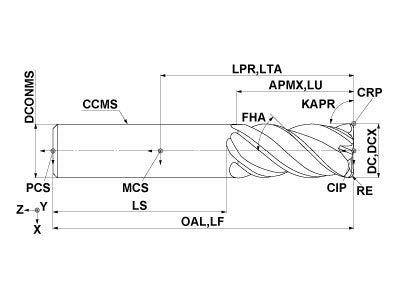

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: inch
DC
0.3125
APMX
0.75
LU
0.75
LH
0.75
OAL
2.75
DCONMS
0.3125
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
Unit: inch
DC
0.3125
APMX
0.75
LU
0.75
LH
0.75
OAL
2.75
DCONMS
0.3125
RE
0.02
FHA
40.0
ZEFP
4
ZEFF
4
SMART MIRACLE irregular helix end mills for reduced vibration and for delivering a stable performance on difficult-to-cut materials and long overhang applications.
2D Model (DXF)
3D Model (STP)
