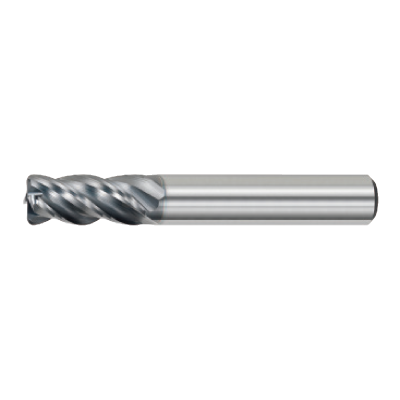

diaedge
VQMHVRBD3/8R040
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614213

ANSI

VQMHVRB/040RX3/8

ISO

VQMHVRBD3/8R040

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

33

Regular price $149.47 USD
Regular price Sale price $149.47 USD
Sale

EDP

614213

ANSI

VQMHVRB/040RX3/8

ISO

VQMHVRBD3/8R040

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

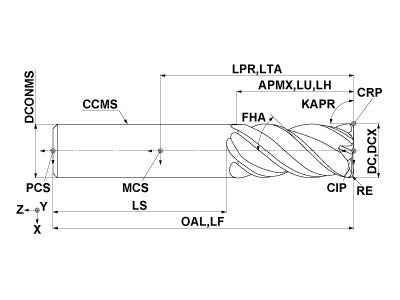

  • Drawings
  • Technical Information
VQMHVRBD3/8R040
Coolant
External
Hand
Right

Unit: inch

DC
0.375
APMX
0.875
LU
0.875
LH
0.875
OAL
3
DCONMS
0.375
RE
0.04
FHA
40.0
ZEFP
4
ZEFF
4
VQMHVRBD3/8R040

Unit: inch

DC
0.375
APMX
0.875
LU
0.875
LH
0.875
OAL
3
DCONMS
0.375
RE
0.04
FHA
40.0
ZEFP
4
ZEFF
4
