diaedge

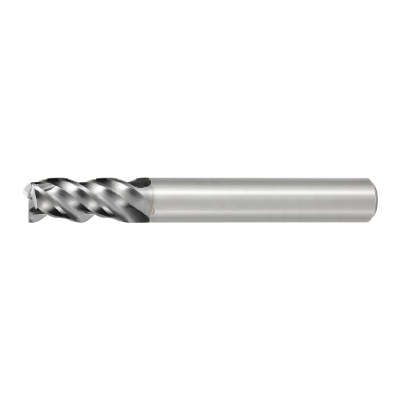

VQMHZVD3/32
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614336

ANSI

VQMHZV/3/32

ISO

VQMHZVD3/32

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

246

Regular price $37.61 USD
Regular price Sale price $37.61 USD
Sale

EDP

614336

ANSI

VQMHZV/3/32

ISO

VQMHZVD3/32

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD3/32
Coolant
External
Hand
Right

Unit: inch

DC
0.0938
APMX
0.188
LU
0.188
LH
0.224
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
VQMHZVD3/32

Unit: inch

DC
0.0938
APMX
0.188
LU
0.188
LH
0.224
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
