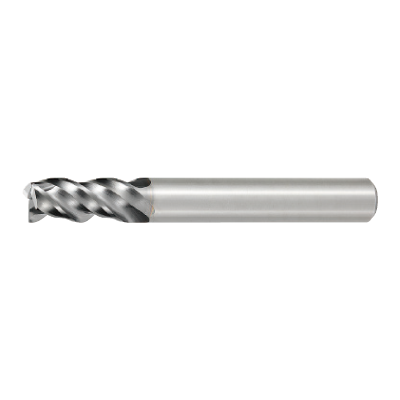

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

614352

ANSI

VQMHZV/1/8

ISO

VQMHZVD1/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

748

Regular price $39.43 USD
Regular price Sale price $39.43 USD
Sale

EDP

614352

ANSI

VQMHZV/1/8

ISO

VQMHZVD1/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD1/8
Coolant
External
Hand
Right

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
VQMHZVD1/8

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
