EDP

614424

ANSI

VQMHZV/1/2

ISO

VQMHZVD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

37

Regular price $194.09 USD
Regular price Sale price $194.09 USD
Sale

EDP

614424

ANSI

VQMHZV/1/2

ISO

VQMHZVD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

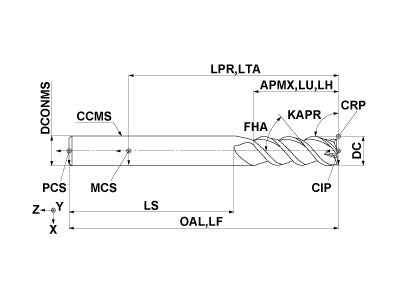

  • Drawings
  • Technical Information
VQMHZVD1/2
Coolant
External
Hand
Right

Unit: inch

DC
0.5
APMX
1.125
LU
1.125
LH
1.125
OAL
3.5
DCONMS
0.5
FHA
45.0
ZEFP
3
ZEFF
3
VQMHZVD1/2

Unit: inch

DC
0.5
APMX
1.125
LU
1.125
LH
1.125
OAL
3.5
DCONMS
0.5
FHA
45.0
ZEFP
3
ZEFF
3
