diaedge
VQMHVRBD0200R030
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

617529

ANSI

VQMHVRB/0.3RX2

ISO

VQMHVRBD0200R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

64

Regular price $52.68 USD
Regular price Sale price $52.68 USD
Sale

EDP

617529

ANSI

VQMHVRB/0.3RX2

ISO

VQMHVRBD0200R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

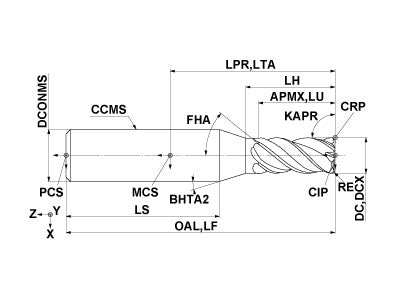

  • Drawings
  • Technical Information
VQMHVRBD0200R030
Coolant
External
Hand
Right

Unit: mm

DC
2
APMX
4
LU
4
LH
4.9
OAL
45
DCONMS
4
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBD0200R030

Unit: mm

DC
2
APMX
4
LU
4
LH
4.9
OAL
45
DCONMS
4
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
