diaedge

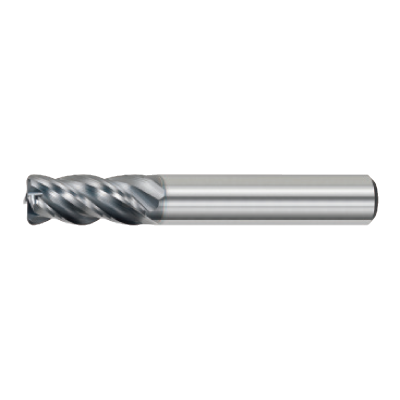

VQMHVRBD0300R030
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

617545

ANSI

VQMHVRB/0.3RX3

ISO

VQMHVRBD0300R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

152

Regular price $54.01 USD
Regular price Sale price $54.01 USD
Sale

EDP

617545

ANSI

VQMHVRB/0.3RX3

ISO

VQMHVRBD0300R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

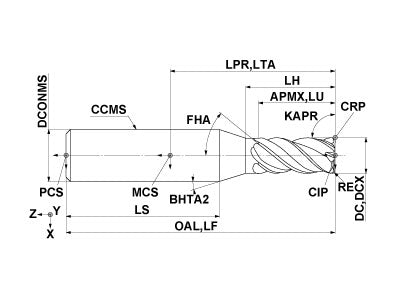

VQMHVRBD0300R030
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
8
LU
8
LH
8.9
OAL
45
DCONMS
6
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBD0300R030

Unit: mm

DC
3
APMX
8
LU
8
LH
8.9
OAL
45
DCONMS
6
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
